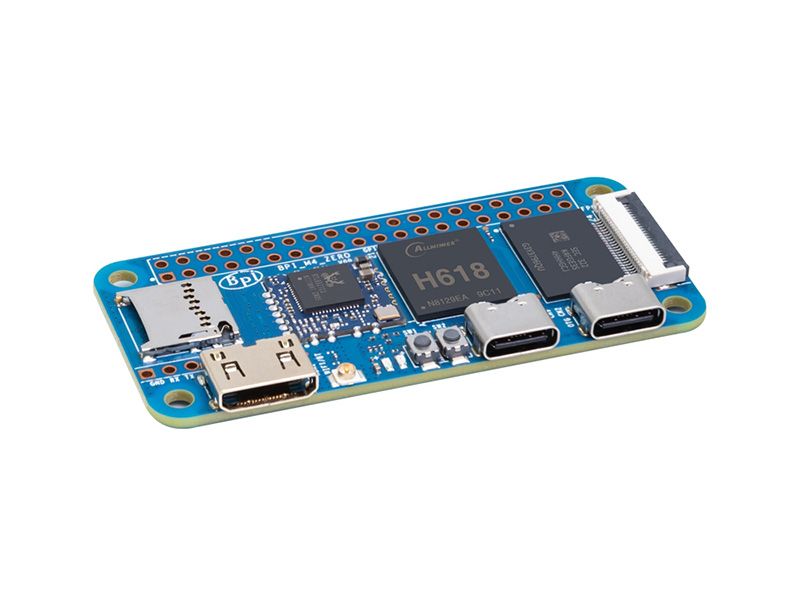

Banana Pi BPI-M4 Zero by SinoVoip
Banana Pi BPI-M4 Zero is the successor model of M2 Zero. It has a huge improvement in performance. The SOC is upgraded to H618 and the CPU frequency is increased by 25%. The memory is upgraded to DDR4, the capacity is quadrupled, and 8G eMMC is added. It supports 5G WiFi, and the USB interface has also been upgraded to type-C.
It has same form factor and 40-pin connector as the Raspberry Pi Zero W, and it can fit most of the RPI Zero W cases and accessories.
- Allwinner H618, Quad-core ARM Cortex™-A53 processor
- ARM Mali G31 GPU
- 2.4G/5G WIFI & Bluetooth 4.2
- 2G LPDDR4 RAM
- 8G eMMC flash memory
- 1x USB2.0 Type-C OTG, 5V power supply
- 1x USB2.0 Type-C
- 1x miniHDMI 2.0a
- 1x 24-pin FPC connector
- 1x USB2.0
- 1x 100Mbps Ethernet
Purchase
Contribute
Have some info to add for this board? Edit the source for this page here.
Adafruit Blinka Installation
We use a special library called adafruit_blinka (named after Blinka, the CircuitPython mascot) to provide the layer that translates the CircuitPython hardware API to whatever library the Linux board provides.
For example, on Raspberry Pi we use the python RPi.GPIO library. For any I2C interfacing we'll use ioctl messages to the /dev/i2c device. For SPI we'll use the spidev python library, etc. These details don't matter so much because they all happen underneath the adafruit_blinka layer.
