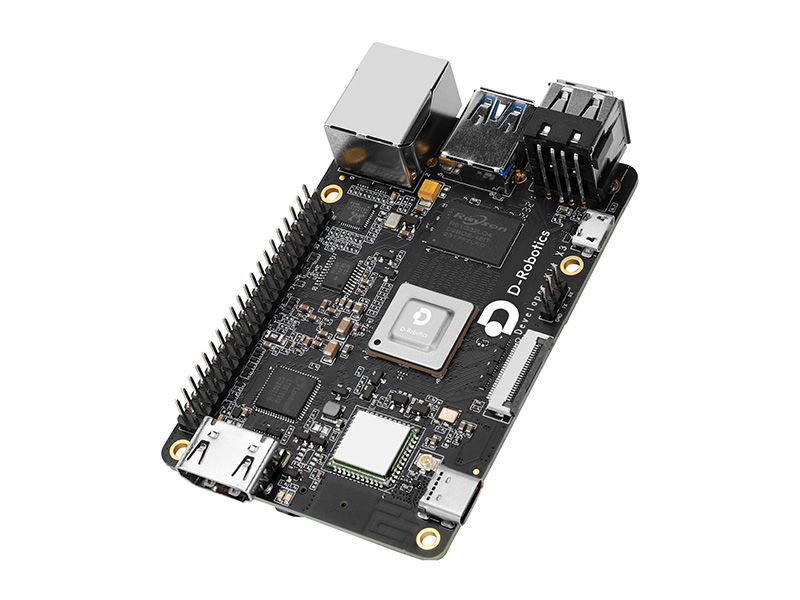

D-Robotics RDK-X3 by D-Robotics
The RDK X3 series development kits include two products: RDK X3 and RDK X3 Module, both of which are equipped with the Rising Sun 3 intelligent computing solution, have 5TOPs of edge-side inference computing power, and are compatible with Raspberry Pi 4B and CM4 interfaces, making it easy for developers to quickly integrate.
- Quad-core ARM® Cortex® [email protected]
- Dual-core Bernoulli Arch, 5Tops
- H.265 (HEVC) Encoding and DecodingMain profile, L5.1 4K@60fps, JPEG Encoding and Decoding 16Mpixels
- 2GB/4GB LPDDR4 RAM
- 16GB/32GB/64GB eMMC or Micro SD
- MIPI CSI 2lane x 2
- USB Type-A 3.0 x 1 USB Type-A 2.0 x 2
- Micro USB 2.0 x 1
- 1 x Debug UART
- 1 x HDMI1.4 (up to 1080p60)
- Wi-Fi 2.4/5GHz Bluetooth 4.2
- RJ45 interface
- 40 Pin GPIO, I2C, UART, SPI, I2S, PWM
- 5V 3A Power input
- Ubuntu 20.04/22.04
Purchase
Contribute
Have some info to add for this board? Edit the source for this page here.
Adafruit Blinka Installation
We use a special library called adafruit_blinka (named after Blinka, the CircuitPython mascot) to provide the layer that translates the CircuitPython hardware API to whatever library the Linux board provides.
For example, on Raspberry Pi we use the python RPi.GPIO library. For any I2C interfacing we'll use ioctl messages to the /dev/i2c device. For SPI we'll use the spidev python library, etc. These details don't matter so much because they all happen underneath the adafruit_blinka layer.
