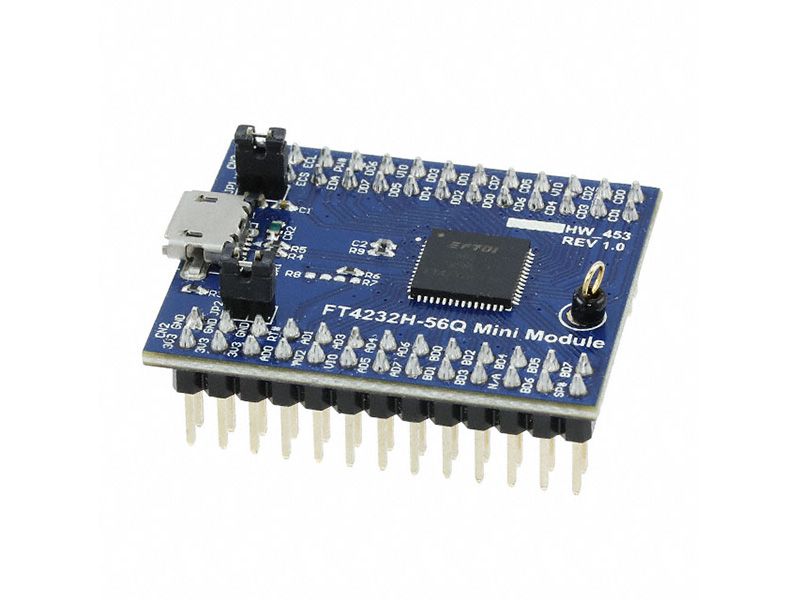

Image of Board

FT4232H by Future Technology Devices International Ltd

The FT4232H is FTDI’s 5th generation of USB devices. The FT4232H is a USB 2.0 High Speed (480Mb/s) to UART/MPSSE ICs. The device features 4 UARTs. Two of these have an option to independently configure an MPSSE engine. This allows the FT4232H to operate as two UART/Bit-Bang ports plus two MPSSE engines used to emulate JTAG, SPI, I2C, Bit-bang or other synchronous serial modes. The FT4232H has the following advanced features:

  • FTDI FT232B style, asynchronous serial UART interface option with full hardware handshaking and modem interface signals. Fully assisted hardware or X-On / X-Off software handshaking.
  • UART Interface supports 7/8-bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity.
  • Auto-transmit enables control for RS485 serial applications using TXDEN pin.
  • Single chip USB to quad serial ports with a variety of configurations.
  • Entire USB protocol handled on the chip. No USB specific firmware programming required.
  • USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.
  • Two Multi-Protocol Synchronous Serial Engine (MPSSE) on channel A and channel B, to simplify synchronous serial protocol (USB to JTAG, I2C, SPI or bit-bang) design.
  • Independent Baud rate generators.
  • RS232/RS422/RS485 UART Transfer Data Rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).
  • FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
  • Optional traffic TX/RX indicators can be added with LEDs and an external 74HC595 shift register.
  • Adjustable receive buffer timeout.
  • Support for USB suspend and resume conditions via PWREN#, SUSPEND# and RI# pins.
  • Highly integrated design includes +1.8V LDO regulator for VCORE, integrated POR function and on chip clock multiplier PLL (12MHz – 480MHz).
  • Operational configuration mode and USB Description strings configurable in external EEPROM over the USB interface.
  • Low operating and USB suspend current.
  • Configurable I/O drive strength (4, 8, 12 or 16mA) and slew rate.
  • Supports bus powered, self-powered and highpower bus powered USB configurations.
  • UHCI/OHCI/EHCI host controller compatible.
  • USB Bulk data transfer mode (512 byte packets in High-Speed mode).
  • Dedicated Windows DLLs available for USB to JTAG, USB to SPI, and USB to I2C applications.
  • +1.8V (chip core) and +3.3V I/O interfacing (+5V Tolerant).
  • Extended -40°C to 85°C industrial operating temperature range.
  • Compact 64-LD Lead Free LQFP or QFN package
  • Available in compact Pb-free 56 Pin VQFN packages (RoHS compliant)
  • +3.3V single supply operating voltage range.
  • ESD protection for FT4232H IO’s: Human Body Model (HBM) ±2kV, Machine Mode (MM) ±200V, Charge Device Model (CDM) ±500V, Latch-up free.

Purchase

Contribute

Have some info to add for this board? Edit the source for this page here.

Adafruit Blinka Installation

We use a special library called adafruit_blinka (named after Blinka, the CircuitPython mascot) to provide the layer that translates the CircuitPython hardware API to whatever library the Linux board provides.

For example, on Raspberry Pi we use the python RPi.GPIO library. For any I2C interfacing we'll use ioctl messages to the /dev/i2c device. For SPI we'll use the spidev python library, etc. These details don't matter so much because they all happen underneath the adafruit_blinka layer.
