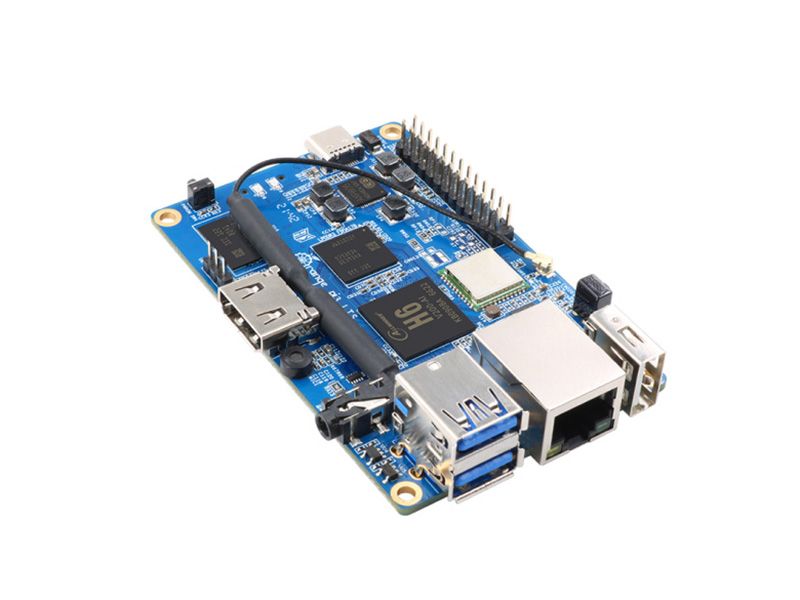

Orange Pi 3 LTS by Shenzhen Xunlong Software CO.,Limited

Orange Pi 3 LTS is an open-source single-board computer with dual-band wireless WiFi and Bluetooth 5.0 .It is highly compact with a dimension of 56X85mm.

Orange Pi 3 LTS uses the Allwinner H6 SoC, and has 2GB LPDDR3 SDRAM, 8GB EMMC Flash. It can run Android 9,Ubuntu,Debian. Orange Pi 3 LTS offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,1USB 3.0, 2 USB2.0，etc. It is powered through Type-C. It is a good choice for applications that need strong networking perfomance.

Hardware specification

• Allwinner H6 Quad-core 64-bit 1.8GHz high-performance Cortex-A53 processor
• • High-performance multi-core GPU Mali T720
  • OpenGL ES3.1/3.0/2.0/1.1
  • Microsoft DirectX 11 FL9_3
  • ASTC(Adaptive Scalable Texture Compression)
  • Floating point operation greater than 70 GFLOPS
• AXP805 2GB LPDDR3 (shared with GPU)
• • Micro SD card slot
  • 8GB EMMC Flash
  • YT8531C Chip
  • Support 10/100M/1000M Ethernet
  • 859 Chip
  • Support IEEE 802.11 a/b/g/n/ac
  • Support BT5.0
  • HDMI 2.0a
  • TV CVBS Output
  • HDMI Output
  • 3.5mm Audio Port
• 5V3A Type-C
• 1* USB 3.0 HOST, 2* USB 2.0 HOST
• 26pin connector with1* I2C, 1SPI, 1UART &Multiple GPIO Ports
• UART-TX, UART-RX & GND
• Power Button (SW4)
• Power LED& Status LED
• Support IR Remote Control
• Android 9.0, Ubuntu, Debian
