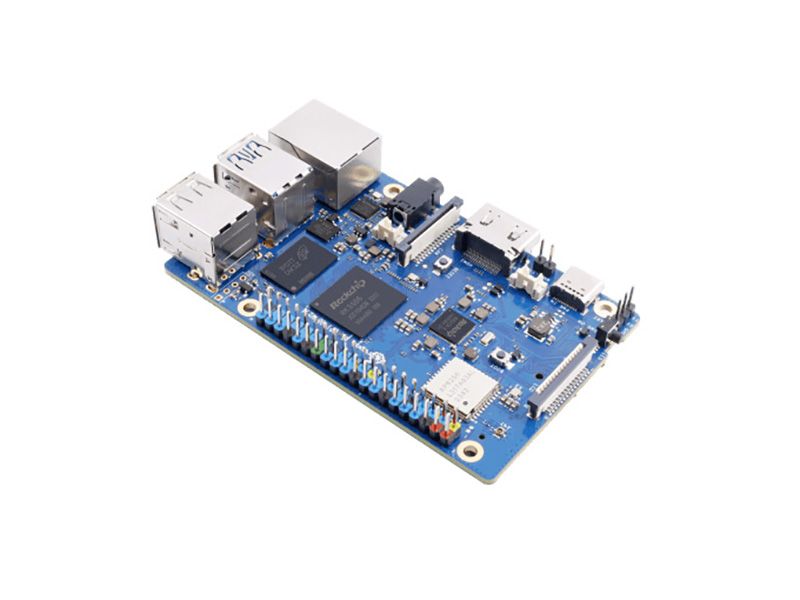

Orange Pi 3B by Shenzhen Xunlong Software CO.,Limited
Orange Pi 3B is powered by Rockchip RK3566 quad-core 64-bit processor with 22nm advanced process, up to 1.8GHz main frequency, integrated ARM Mali G52 2EE graphics processor with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 support, embedded high-performance 2D acceleration module; built-in AI accelerator NPU with 0.8Tops computing power; VPU can achieve 4K@60fps H.265/H.264/VP9 video decoding and 1080P@100fps H.265 video encoding, 1080P@60fps H.264 video encoding, support 8M ISP and HDR; with 2GB/4GB/8GB (LPDDR4/ 4X), supports 16GB/32GB/64GB/128GB/256GB eMMC module, 16MB/32MB SPI Flash, has Wi-Fi5, BT5.0, with BLE support.
Orange Pi 3B references a wealth of interfaces, including HDMI output, M.2 M-KEY（optional）, Micro SD slot, Gigabit LAN port, USB2.0, USB3.0, 3.5mm headphone jack, MIPI DSI port, eDP port, MIPI CSI camera port, multifunctional 40 Pin expansion port, etc., which can be widely applied to TV boxes, high-end tablet, edge computing, face recognition, smart security, smart home and other fields, empowering rich AI applications and IoT scenarios. Orange Pi 3B supports Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
Purchase
Contribute
Have some info to add for this board? Edit the source for this page here.
Adafruit Blinka Installation
We use a special library called adafruit_blinka (named after Blinka, the CircuitPython mascot) to provide the layer that translates the CircuitPython hardware API to whatever library the Linux board provides.
For example, on Raspberry Pi we use the python RPi.GPIO library. For any I2C interfacing we'll use ioctl messages to the /dev/i2c device. For SPI we'll use the spidev python library, etc. These details don't matter so much because they all happen underneath the adafruit_blinka layer.
