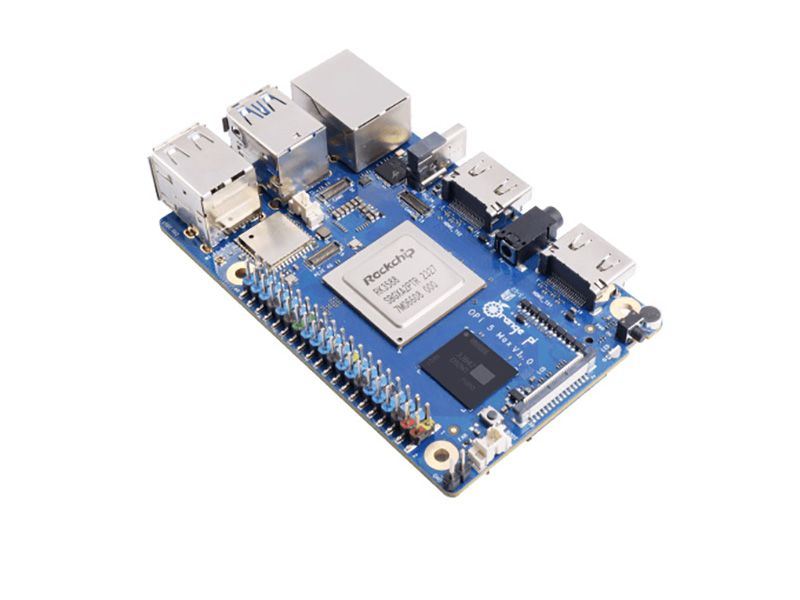

Orange Pi 5 Max by Shenzhen Xunlong Software CO., Limited

OrangePi 5 Max uses Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.4GHz), 4 Cortex-A55 (1.8GHz) and independent NEON coprocessor. Adopting 8nm process design, the main frequency is up to 2.4GHz, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2; the embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing, with up to 6TOPS of computing power, which can meet the edge computing needs of most terminal devices; it has 4GB/8GB/16GB LPDDR5, with up to 8K display processing capability, supports eMMC socket and onboard eMMC (either one ), and has Wi-Fi 6E+BT 5.3 with BLE support.

OrangePi 5 Max provides abundant interfaces, including HDMI output, GPIO interface, USB2.0, USB3.0, 3.5mm headphone socket, one PCIe extended 2.5G high-speed network port, one M.2 M-Key slot (PCIe 3.0 4-Lane), supporting for the installation of NVMe SSDs or SATA SSDs. OrangePi 5 Max is compact, PCB measuring only 89mmX57mmX1.6mm, and powerful enough to be widely used in high-end tablets, edge computing, artificial intelligence, cloud computing, AR/VR, smart security, smart home, etc., covering various industries of AIoT. OrangePi 5 Max supports Orangepi OS（Droid）、Orangepi OS（Arch）、Orangepi OS（OH）、Ubuntu、Debian、Android13 operating system.

Specifications

• Rockchip RK3588 (8nm LP process)
• • • 8-core 64-bit processor
  • • 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor
  • • Cortex-A76 at 2.4GHz, Cortex-A55 at 1.8GHz
  • • Integrated ARM Mali-G610
  • • Built-in 3D GPU
  • • Fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2.
• Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS. RK806-1 LPDDR5 496PIN：4GB, 8GB, 16GB optional
• • • eMMC Flash Sockets (default)
  • • Onboard eMMC (customizable) Note: Either eMMC socket or on-board eMMC, support: 32GB, 64GB, 128GB, 256GB optional
• • • QSPI Nor FLASH: 16MB
  • • MicroSD card slot
  • • M.2 M-KEY slot: Support NVMe SSD (PCIe 3.0 4Lane)
• 2 * USB3.0; 2 * USB2.0
• • • 2 * HDMI 2.1, up to 8k@60FPS
  • • 1 * MIPI DSI TX 4 Lane
  • • 2 * MIPI CSI 4 Lane
  • • 1 * MIPI D-PHY RX 4 Lane
• CODEC：ES8388
• • • 1 * Audio 3.5mm jack with mic
  • • 1 * MIC In
  • • 1 * HDMI 2.1 eARC
• 1 * PCIe 2.5G LAN (RTL8125BG)
• Onboard Wi-Fi 6E+BT 5.3/BLE module: AP6611
• Wi-Fi interface: SDIO3.0
• BT interface: UART/PCM
• Dual-row pin: 2.54mm 40Pin
• Supports DC 5V and 3.3V power output
• Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
• 1 * BOOT key, 1 * On/Off key
• Supports Type-C power supply, 5V @ 5A
• RGB LED Side Illumination
• 5V 2PIN 1.25mm socket
• 3V 2PIN 1.25mm socket
• Debug serial UART included in 40PIN expansion port
• Orangepi OS (Droid), Orangepi OS (Arch), Orangepi OS (OH), Ubuntu, Debian, Android13
