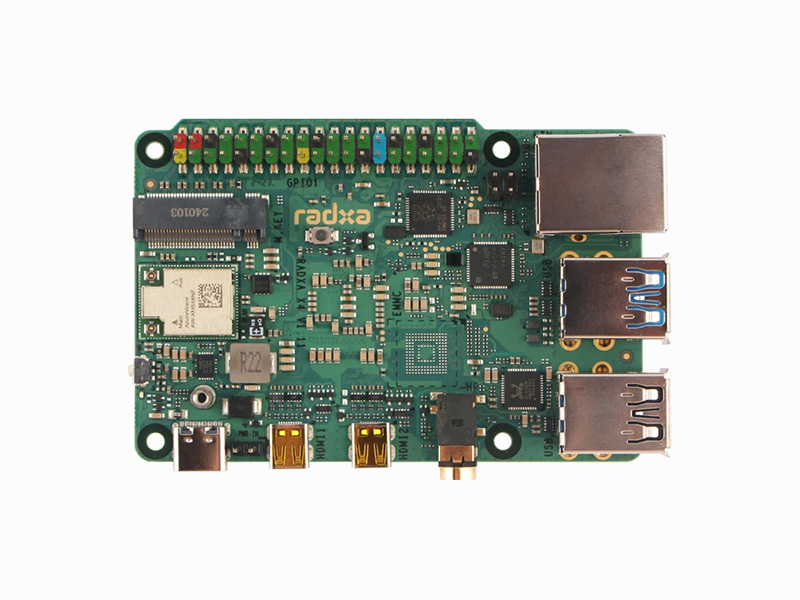

Rock X4 by Radxa Limited

Intel N100 powered, high performance and competitive priced SBC by RADXA

Specifications

• Intel® Processor N100 (Alder Lake‑N)
  • Total Cores: 4
  • Total Threads: 4
  • Max Turbo Frequency: 3.40 GHz
  • Cache: 6 MB Intel® Smart Cache
  • Intel® Gaussian & Neural Accelerator 3.0
  • Intel® Image Processing Unit 6.0
  • Support for Intel® Virtualization Technology
• Intel® UHD Graphics
  • Graphics Max Dynamic Frequency: 750 MHz
  • DirectX Support: 12.1
  • OpenGL Support: 4.6
  • OpenCL Support: 3.0
• LPDDR5 RAM
• 4GB /8GB /16GB option
• Optional Onboard eMMC
• SPI Flash for BIOS
• Dual Display
  • output via 2 Micro HDMI ports up to 4Kp60
• Audio
  • 3.5mm headphone jack with mic input
• Wireless (optional)
  • IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and Bluetooth 5.2 with BLE
  • IEEE 802.11 a/b/g/n/ac (WiFi 5) and Bluetooth 5.0 with BLE
• 1x M.2 M Key Connector with PCIe 3.0 4-lane for M2 2230 NVMe SSD
• 3x USB 3.0 5Gbps Type A HOST Ports
• 1x USB 2.0 Type A HOST port
• 1x 2.5 GbE LAN Port with PoE support (via optional PoE hat)
• The 40-pin expansion header, provided via RP2040, is compatible with many accessories which where developed for the SBC market.
• up to 2 x UART
• up to 2 x SPI
• up to 2 x I2C
• up to 16x PWM
• up to 8 x PIO (Programmable IO)
• 1 x 5V DC power in/out
• 2 x 3.3V DC power out
• RTC Battery Socket
• 2-pin 1.25mm Fan Header
• 1x power button
• 1x BOOTSEL button for RP2040
