Vicharak Vaaman by Vicharak

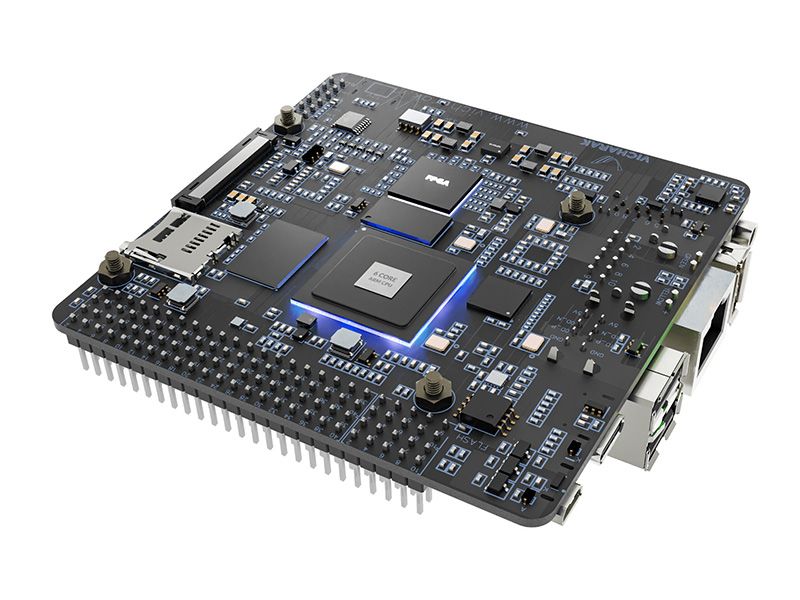

Vaaman combines the flexibility of an FPGA with the power of an ARM processor to create something truly unique: a re-configurable computer that adapts to your needs. While traditional computers struggle with the increasing demands of realtime processing and AI workloads, Vaaman takes a different approach. By integrating a powerful six-core ARM processor with an Efinix Trion T20 FPGA with 112k LEs, we’ve created a platform that can dynamically reconfigure itself for optimal performance across diverse computing tasks.

Features & Specifications

• CPU: Rockchip RK3399
  • Dual Cortex-A72 + Quad Cortex-A53
  • Mali-T864 GPU with OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11 support
  • 2 GB or 4 GB LPDDR4 RAM
• FPGA: Efinix Trion T120
  • Logic Elements: 112,128
  • Embedded Memory: 5,407 Kb
  • Embedded Memory Blocks (5 Kb each): 1,056
  • Embedded Multipliers: 320 (18x18 bit)
  • 512 MB of DDR3L dedicated RAM, x32 PHY with memory controller hard IP, 25.6 Gbps aggregate bandwidth
  • Supports 1.8, 2.5, and 3.3-V single-ended I/O standards and interfaces
  • Up to 16 PLL-generated global clock signals
• Realtime clock (RTC) with battery backup
