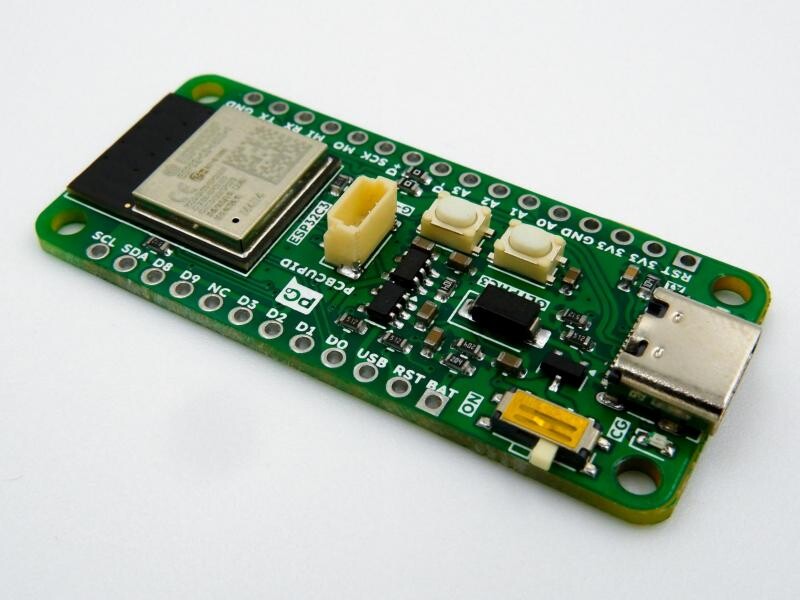

Pcbcupid GLYPH C3 by Pcbcupid
The Pcbcupid GLYPH C3 is a compact development board based on the ESP32-C3-MINI-1-N4 module, built for low-power IoT, sensor nodes, and Wi-Fi/BLE connected embedded projects. With a RISC-V core, integrated wireless, and onboard LiPo charging, the GLYPH C3 packs full connectivity into a breadboard-friendly footprint.
The board features an onboard GLINK connector — QWIIC/STEMMA QT compatible — for solder-free sensor and module integration. It includes auto power switching between USB and battery, battery voltage sensing, and a slide switch to cut battery power entirely.
The GLYPH C3 uses a built-in USB bootloader. Hold BOOT while plugging in USB to enter bootloader mode — it appears as a COM port for flashing. Note: CIRCUITPY_USB_DEVICE is disabled at the port level for all C3 boards, so there’s no mass storage drive when running CircuitPython — use ampy or the serial REPL for file transfer instead.
For peripherals, the ESP32-C3 exposes I2C, SPI, and UART via the GPIO matrix — default pin assignments are silkscreened. All GPIO pins support PWM.
Board specifications
- ESP32-C3-MINI-1-N4 module
- Single-core 32-bit RISC-V processor up to 160 MHz, 3.3V logic
- 400KB SRAM, 4MB SPI flash
- Wi-Fi 802.11 b/g/n (2.4 GHz)
- Bluetooth 5 (LE)
- USB-C for power, programming, and serial debugging
- Built-in LiPo/Li-ion charger with charging status LED
- Auto power switching between USB and battery
- Onboard slide switch to cut battery power
- Battery voltage sensing
- LiPo solder pads on rear of board
- 3.3V regulator
- I2C: SCL=GPIO5, SDA=GPIO4
- SPI: SCK=GPIO10, MOSI=GPIO6, MISO=GPIO7
- UART0: TX=GPIO21, RX=GPIO20
- GLINK connector (QWIIC/STEMMA QT compatible)
- BOOT and RESET buttons onboard
