Xteink X4 by Xteink

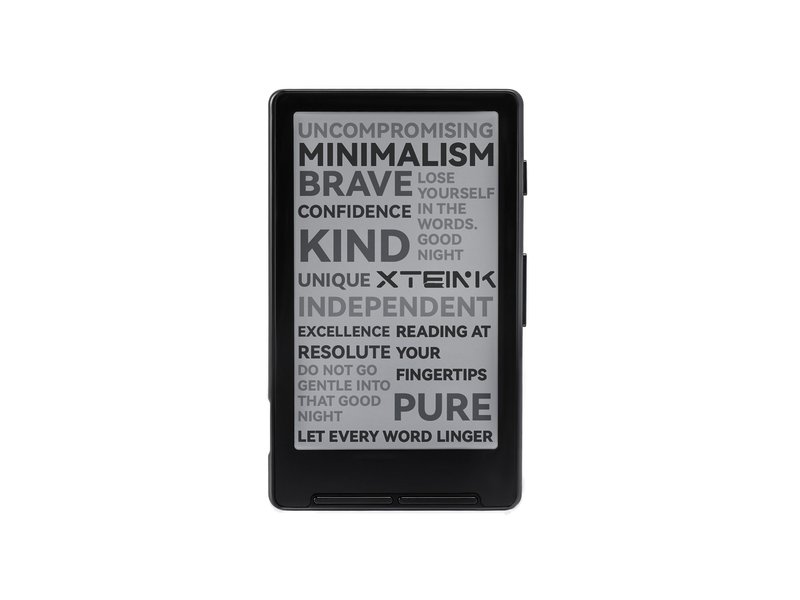

The Xteink X4 is an ESP32-C3 based board with a built-in 4.26” e-paper display (800×480 resolution) using an SSD1677 controller driving a GDEQ0426T82 e-ink panel. The ESP32-C3 provides Wi-Fi and Bluetooth Low Energy connectivity.
The board features 16MB of flash storage and uses SPI to communicate with the e-paper display. It includes a boot button for entering safe mode. The display is initialized automatically on boot with CircuitPython’s displayio/epaperdisplay support.
Purchase
Contribute
Have some info to add for this board? Edit the source for this page here.
CircuitPython 10.2.0-rc.0
This is the latest development release of CircuitPython that will work with the Xteink X4.
Alpha development releases are early releases. They are unfinished, are likely to have bugs, and the features they provide may change. Beta releases may have some bugs and unfinished features, but should be suitable for many uses. A Release Candidate (rc) release is considered done and will become the next stable release, assuming no further issues are found.
Please try alpha, beta, and rc releases if you are able. Your testing is invaluable: it helps us uncover and find issues quickly.
Modules included in this download
_asyncio _bleio _bleio (native) _eve _pixelmap adafruit_bus_device adafruit_pixelbuf aesio alarm analogbufio analogio array atexit binascii bitbangio bitmapfilter bitmaptools board builtins builtins.pow3 busdisplay busio busio.SPI busio.UART codeop collections digitalio displayio epaperdisplay errno espidf espnow fontio fourwire framebufferio getpass gifio hashlib i2cdisplaybus io ipaddress jpegio json locale lvfontio math max3421e mdns microcontroller msgpack neopixel_write nvm onewireio os os.getenv ps2io random re rtc sdcardio select sharpdisplay socketpool socketpool.socketpool.AF_INET6 ssl storage struct supervisor supervisor.get_setting sys terminalio tilepalettemapper time touchio traceback usb vectorio warnings watchdog wifi zlibFeatures: Wi-Fi, Bluetooth/BTLE, Display
Absolute Newest
Every time we commit new code to CircuitPython we automatically build binaries for each board and language. The binaries are stored on Amazon S3, organized by board, and then by language. These releases are even newer than the development release listed above. Try them if you want the absolute latest and are feeling daring or want to see if a problem has been fixed.
Previous Versions of CircuitPython
All previous releases of CircuitPython are available for download from Amazon S3 through the button below. For very old releases, look in the OLD/ folder for each board. Release notes for each release are available at GitHub button below.
Older releases are useful for testing if you something appears to be broken in a newer release but used to work, or if you have older code that depends on features only available in an older release. Otherwise we recommend using the latest stable release.
